CAD from a Physical Sample: Calipers, Not a Phone Beauty Shot

CAD from a physical sample is the bench-caliper path: OD, cavity depth, island width, and texture copied from a part you own - not guessed from a cropped product-page photo. If you're sending a chocolate bar, a resin master, or a worn tray you have rights to, we measure it, decide whether to reconstruct damage or copy as-is, then build a freeze-ready model. Custom/simple 3D modeling is USD $50 when that scope applies. A selfie of someone else's Amazon mold is not this service.

RUUIPON, Bao'an since 2018. Prototype 3-7 business days after CAD lock. MOQ 20 per design. Pair with from photos, design service, master options. Catalog: process catalog. We don't reverse-engineer an LSR cold-runner from a teether photo - send an HTV product RFQ here.

What the calipers have to catch

Overall length/width/height in millimetres, in the same plane as the face.
Cavity depth vs wall if it's a vessel.
Logo island width and depth.
Undercuts you cannot see in a three-quarter shot.
Wear: stretch, chips, yellowing - copy or reconstruct, named.

Don't use a coin as the commercial datum. Don't copy a stretched old RTV as the new nominal - replacement.

Common mix-up: photos = CAD from sample

A physical sample allows dimensions and surface details to be measured directly. If only photographs are available, include multiple views and a visible scale; critical dimensions may still need confirmation before CAD approval. For weight-sensitive cavities, agree how volume and finished piece weight will be validated.

Typical shop values

Reference values only. Confirm material-specific limits against the supplier’s technical data and agree project acceptance criteria before production.

Item	Typical shop value
Custom/simple 3D	USD $50 when that scope applies
What we measure	OD, depth, island width, undercut notes
Prototype	3-7 business days after CAD lock
Production MOQ	20 pieces per design
Mix / shrink	Platinum 1:1 or 10:1; ~0.1-0.3% (don't bake sample shrink into CAD twice)

Failure: cropped PDP became the master

Symptom: 8% long; texture from a filter; copied a purchased mold we cannot tool; worn sag became nominal.

Confirm: Was a sample on the bench? IP yours? Reconstruction vs as-is written?

Fix: Ship the sample. Stop the master. Don't multiply to 20.

Worked example: worn 12-up bear tray the brand owns

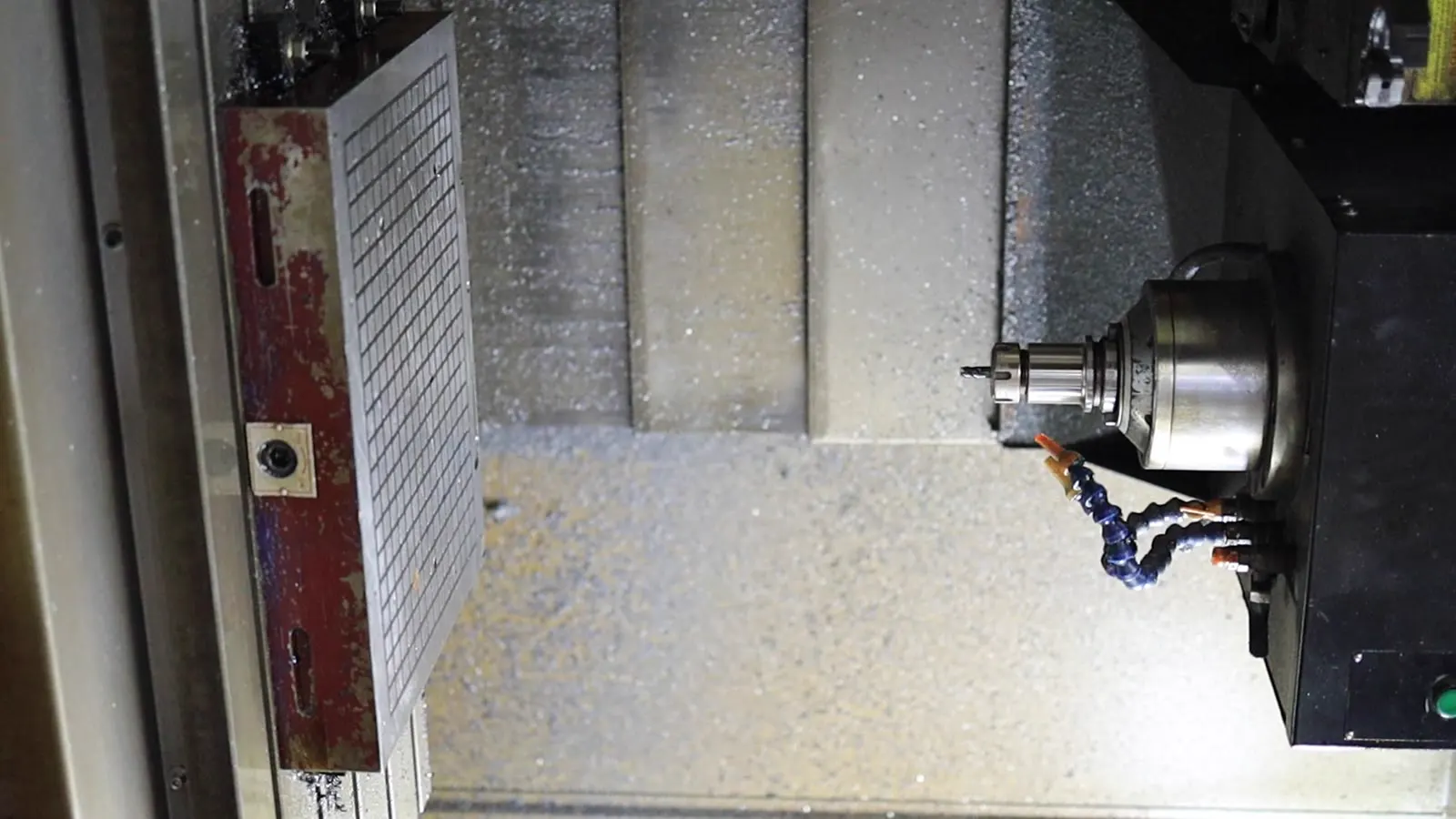

Brand shipped their golden-sample tray, not a competitor's. We calipered OD and cavity depth, ignored edge set, rebuilt CAD, $50 simple model scope, CNC master, prototype 3-7 days after lock vs the golden dump, then MOQ 20. Copying the sagged outer row would have locked 3-6% heavy bears.

What to ask when you're buying CAD from sample

Will you ship the sample, and who pays return?
Copy as-is or reconstruct wear?
Is this the $50 simple scope or a scan/rebuild quote?
Do I get STEP at freeze?
May we legally copy this?

When this service is the wrong path

You already have freeze-ready STEP: skip to DFM. Licensed/competitor product: we won't copy. LSR part reverse-engineering: an HTV product or mold RFQ here, or ask us if you need a high-volume LSR cold-runner tool. Geometry can override: a one-off sculpture sample still needs calipers.

Related: CNC master to pour, contact.

RFQ: sample-to-CAD pack

Copy this.

Sample shipping (we own this IP): yes Copy as-is or reconstruct wear: Known millimetre if photos travel with it: Dump + peak °C + target grams: Simple 3D at $50 in scope? or quote scan/rebuild Then prototype 3-7 days after lock, MOQ 20 Who keeps sample / CAD:

Ship the sample and the IP sentence. contact - [email protected] · +86 135 3006 2969. Ask us to confirm $50 vs rebuild.

We would not recommend copying a purchased retail mold. We would not recommend locking a stretched tray as nominal. We would not recommend silent units. We would not recommend a design fee as unrestricted CAD ownership.

RUUIPON Mold Structure Decision:

Calipers: OD depth islands -> Wear?
Wear? - reconstruct -> Named rebuild
Wear? - as-is -> CAD
Named rebuild -> CAD
CAD -> CAD lock
CAD lock -> 3-7 day prototype

FAQ

Is this the same as $50 modeling? It can be, when the sample is simple. Scans of organic sculpture are scoped first.

Can you start from photos while the sample is in the mail? Review yes. Lock no.

Do you return the sample? Write it. Masters and samples are not dunnage.

What if the sample is a mold, not a part? Don't copy stretch. Prefer the original master or a finished casting.

MOQ after CAD? 20 per design after prototype approval.
