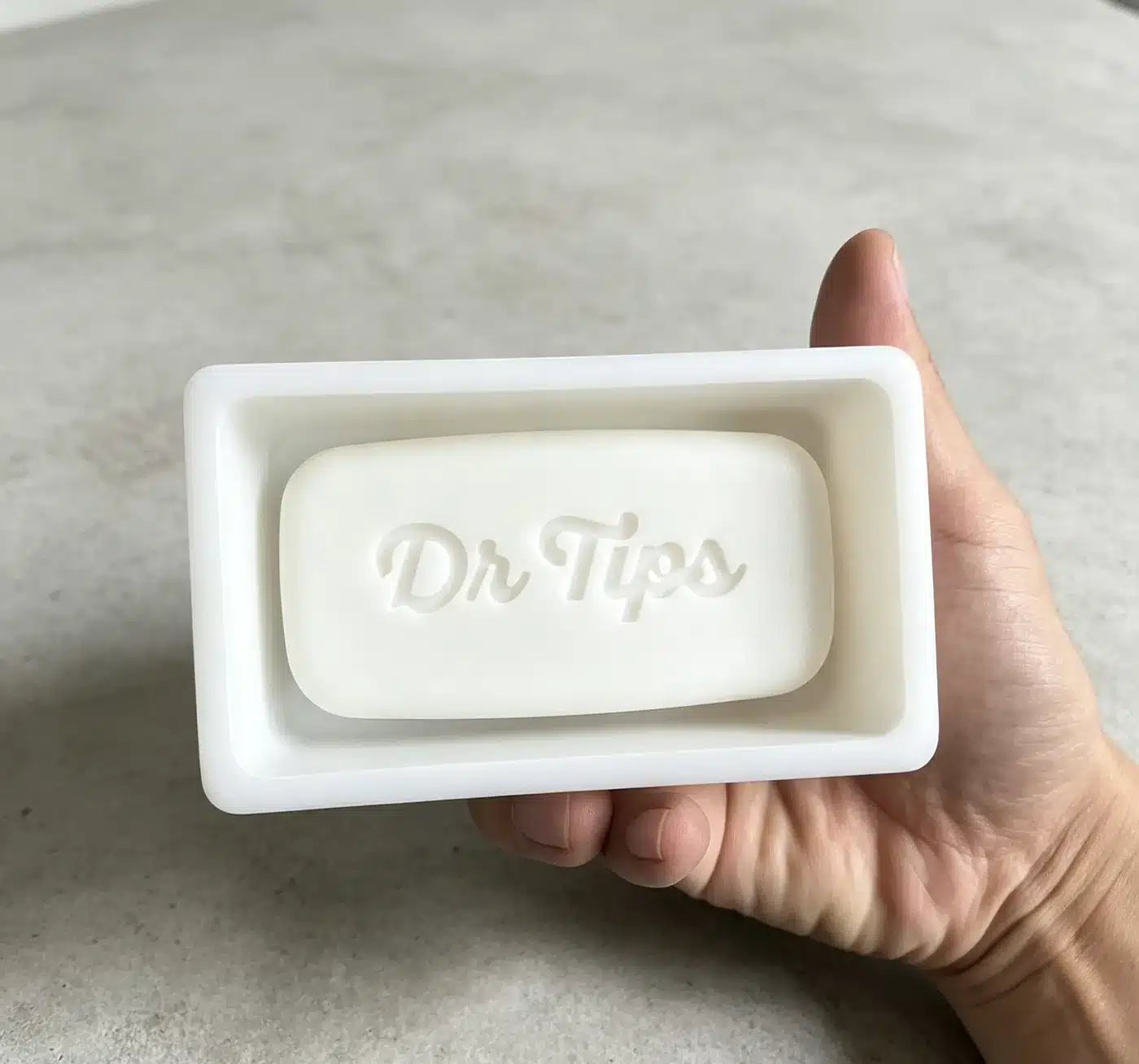

Multi-Cavity Silicone Mold Layout
Choose cavity count and spacing around your equipment, tray dimensions, loaded weight and release method. Compare one large tray with smaller supported layouts.

Set the usable tray size, filling method, support and release sequence before choosing the cavity count. Review the full cavity geometry and loaded tray, then validate the layout with a representative prototype. More cavities are useful only when filling, handling and demolding remain practical.
A production tray has to balance:
- cavity count;
- web strength;
- outside dimensions;
- filled weight;
- filling method;
- machine pitch;
- operator access;
- demolding;
- support.
Choose the cavity count after reviewing these production constraints.
1. The Web Between Cavities Is Structural
The visible gap between cavity openings is not automatically the minimum silicone section.
For deep or tapered cavities, neighboring walls may approach each other below the top surface.
Inspect the section through the deepest/widest area.
The web must tolerate:
- tray carrying;
- local peel stress;
- repeated row flexing;
- filled-weight deflection;
- thermal/process conditions where relevant.
There is no universal cavity-spacing number for every geometry.
2. Deep Cavities Change the Spacing Problem
Two shallow chocolate cavities may fit close together while still leaving useful web.
Two deep undercut cavities may require:
- more structural separation;
- more operator peel access;
- different support.
Use the full 3D cavity—not only the top opening—to set the layout.
3. The Outer Border Is Part of the Structure
The outer border gives the operator somewhere to:
- lift;
- carry;
- locate;
- peel;
- place the mold in a support pan or fixture.
A weak edge can distort outer cavities.
An excessively heavy edge can increase material cost and handling.
Select the border from the actual tray size/load.
4. Cavity Count Changes Filled Weight
A tray that is manageable when empty can become difficult when filled with:
- gummy mass;
- chocolate;
- water;
- soap;
- resin;
- plaster;
- wax.
Review:
- total filled mass;
- center span;
- edge support;
- lifting points;
- carrier/pan.
Filled handling is a design input.
5. Depositor Pitch Can Control the Entire Layout
For machine-filled trays, request:
- nozzle count;
- nozzle diameter;
- X/Y pitch;
- reference edge and first-nozzle position;
- maximum outside tray dimensions;
- nest/carrier dimensions;
- indexing direction;
- scraper clearance.
Use the same reference edge for the machine, carrier and tray drawings. Record the cavity-center positions and verify the full filling sequence. A consistent offset, an error that increases across a row and a mismatch between indexed rows can have different causes. The depositor alignment guide shows how to record those patterns before changing the mold.
6. Operator Access Matters During Demolding
A dense layout can reduce the space needed to:
- flex one row;
- peel one cavity;
- support fragile parts;
- grip the tray.
If extra cavities make demolding much slower or damage neighboring features, the nominal cavity count has not improved output.
Throughput is a system result, not a cavity-count headline.
7. One Large Tray vs Multiple Smaller Trays
Compare:
One Large Tray
Potential advantages:
- fewer trays;
- fewer fill stations;
- simple SKU grouping.
Potential disadvantages:
- higher filled weight;
- more dependence on support;
- larger failure impact;
- more difficult manual handling.
Multiple Smaller Trays
Potential advantages:
- easier handling;
- modular equipment fit;
- easier replacement;
- smaller span.
Potential disadvantages:
- more tray handling;
- more pieces to store/wash/manage.
Compare both options using the same production requirement.
| Decision | Information needed |
|---|---|
| Equipment fit | Usable carrier area, nozzle layout, indexing direction and clearance needed for filling. |
| Loaded handling | Empty mold mass, expected contents, support or carrier mass and the intended lifting method. |
| Release sequence | How operators reach and peel each cavity, with enough support for fragile castings. |
| Output | Accepted pieces per complete fill, set or cure, release and cleaning cycle. |
| Storage and replacement | Shelf or rack size, flat support, packing arrangement and whether smaller sections can be replaced separately. |
For handling estimates, total loaded mass includes the silicone mold, the material in all filled cavities and any carrier or support. Confirm the actual mass with a representative filled trial; cavity count alone does not establish the load.
8. Prototype the Weakest Production Condition
A single-cavity trial can help check:
- geometry;
- basic release.
It may not prove:
- full-span deflection;
- edge/center consistency;
- machine pitch;
- operator reach;
- support.
Where production layout matters, build a representative production-style sample or section that tests the real risk.
9. Position Mapping Can Diagnose Tray Problems
If cavity outputs differ across one tray, map them by row/column.
Compare:
- center;
- edges;
- corners.
Then investigate:
- tray deflection;
- carrier support;
- depositor Z-height;
- scraper plane;
- filling pattern;
- cavity geometry.
Do not immediately assume every cavity was manufactured differently.
10. Packaging and Storage Are Part of Layout
Large trays also affect:
- carton size;
- stacking;
- flat storage;
- support boards;
- shipping distortion risk.
A slightly smaller tray can sometimes reduce both handling and packaging complexity.
Frequently Asked Questions
What spacing should we use between cavities?
There is no universal value. Review the 3D cavity section, web strength, filled load and demolding access.
Can we maximize cavities inside our tray dimensions?
You can optimize them, but maximum density is not automatically the best production result.
Can a one-cavity prototype approve a 24-cavity tray?
It can help evaluate the cavity geometry and release. The production span, support, pitch and handling still need checks representative of the full tray.
Should a large tray use harder silicone?
Not automatically. Structural support may be a better solution.
Can different shapes share one tray?
Sometimes, if fill height, process, handling and demolding remain practical.
Commercial Next Step
Send the finished part or cavity drawing, casting material, desired output, maximum tray dimensions, filling method and mold quantity. Include the support or carrier drawing and nozzle positions when equipment controls the layout. Review our multi-cavity silicone mold service or use the project quotation checklist to prepare your files.
